Tools give your agents the ability to perform actions beyond just responding with text. They can search the web, execute code, query databases, and more.

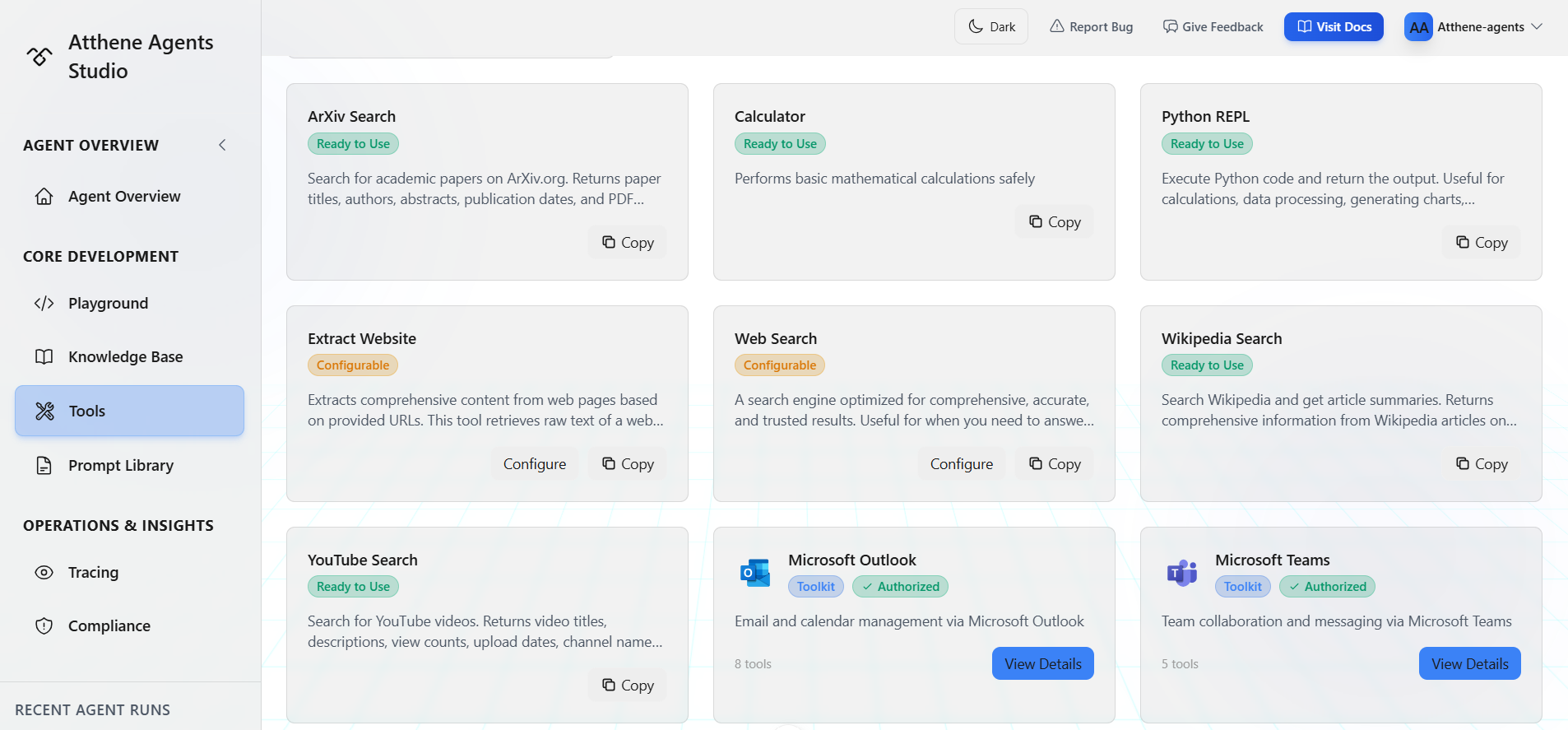

Tools Overview
The Tools page shows all available tools in a grid layout. Each card displays the tool’s name, description, and available actions (Configure, Copy, Authenticate).

​
Tools Interface

The Tools page has two main tabs:

​
All Tools Tab

Browse all available tools:
  • Basic Tools: Ready-to-use tools like web search, Wikipedia, calculator
  • Toolkits: OAuth-based integrations like Microsoft Outlook and Teams
Each tool card shows:
  • Tool name and description
  • Configuration status badge (Config Required, Configurable, or Ready to Use)
  • Toolkit badge (for toolkit tools)
  • Authorization status (for toolkits)
  • Action buttons (Configure, Copy, Authenticate, or View Details)
Use the Filters button to toggle between All, Toolkits, or Basic Tools only.

​
My Tools Tab

Manage your custom tools and configured tool instances

​
Adding Tools to Your YAML

When you click the + button in the Playground, you’ll see a list of available tools:

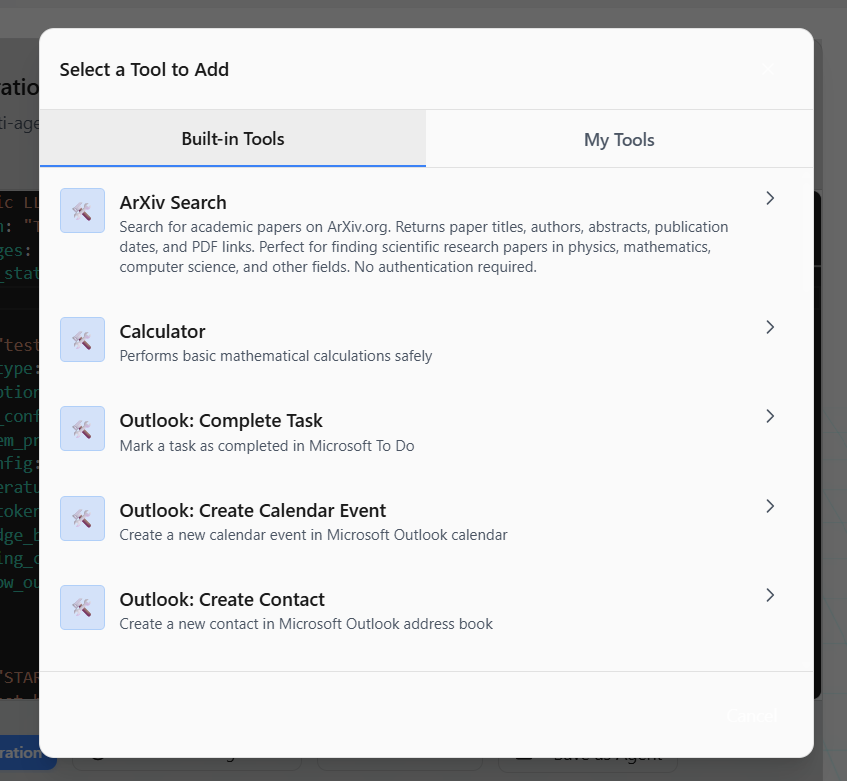

Tools List for YAML Insertion
This modal shows all available tools that you can insert into your agent configuration.
This is for quick YAML insertion in the Playground. Browse by toolkit or search for specific tools.

​
Using Tools in Agents

Once configured, add tools to your agent’s YAML:
agents:
  - name: "research_agent"
    agent_type: "react_agent"
    tools: ["tavily_search", "wikipedia"]  # Add tool names here
    system_prompt: "You are a research assistant."
Only react_agent type can use tools. Standard llm_agent cannot execute tools.
→ Agent Types Reference - Learn about ReAct agents and tool execution

​
Toolkits

Toolkits are collections of related tools that require OAuth authentication. For example, the Microsoft Outlook toolkit includes tools for reading emails, sending emails, and managing calendar events.
Toolkits require OAuth authentication to connect external services like Microsoft Outlook or Teams.

​
Available Toolkits

Current toolkits:
  • Microsoft Outlook: Email and calendar management
  • Microsoft Teams: Channel messages and collaboration

​
Authorizing a Toolkit

Before using toolkit tools in your agents, you need to authorize a connection:
1

Click on the Toolkit

Find the toolkit in the All Tools tab and click on it
2

Click Add Connection

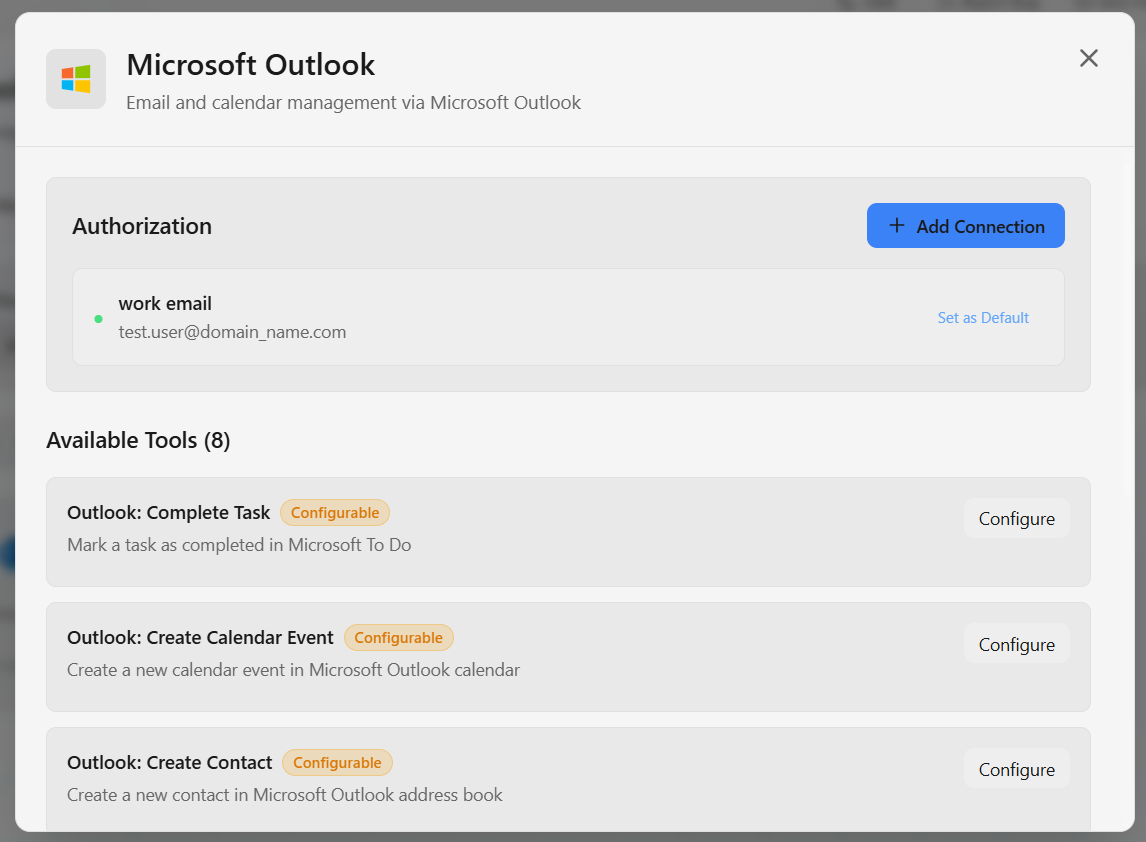

Authorize Connection
Opens the authorization flow
3

Authenticate

Follow the OAuth flow to grant permissionsYou’ll be redirected to Microsoft/Google to sign in
4

Connection Created

Your connection is now saved and can be used by agents
Connections use the default integration configured in Settings. You cannot choose a different integration during connection creation.

​
Using Toolkit Tools in Agents

Once you have a connection, you can use toolkit tools in your YAML:
agents:
  - name: "email_assistant"
    agent_type: "react_agent"
    tools:
      - "outlook_list_emails"
      - "outlook_get_email"
      - "outlook_send_email"
    system_prompt: "You are an email assistant."

​
Specifying a Connection

By default, agents use the first available connection for a toolkit. To use a specific connection:
agents:
  - name: "email_assistant"
    agent_type: "react_agent"
    tools:
      - name: "outlook_list_emails"
        tool_type: "outlook_list_emails"
        connection: "conn_123abc"  # Specify connection
    system_prompt: "You are an email assistant."
If you don’t specify a connection, the agent uses the default connection for that toolkit. If no connection exists, the tool will fail.

​
Managing Connections

View Connections: Click on a toolkit to see all your connections Set Default: Make a connection the default for that toolkit Delete Connection: Remove a connection you no longer need
Deleting a connection will break any agents using it. Make sure to update your agents first.

​
Available Tools

​
Basic Tools

Tavily Search (tavily_search)
  • Web search optimized for accurate, trusted results
  • Real-time information with citations
  • Configurable: max_results, timeout, include_answer, etc.
Tavily Extract (tavily_extract)
  • Extract content from specific URLs
  • Clean and parsed HTML content
  • Configurable: format, timeout
Google Search (google_search)
  • Gemini-grounded Google Search with AI-synthesized answers and citations
  • Configurable: model, temperature, max_output_tokens, timeout
Wikipedia Search (wikipedia_search)
  • Search Wikipedia articles
  • No configuration needed
YouTube Search (youtube_search)
  • Search for YouTube videos
  • Get video metadata and transcripts
Arxiv Search (arxiv_search)
  • Search academic papers on Arxiv
  • Research and scientific content
Python REPL (python_repl)
  • Execute Python code in a sandboxed environment
  • Mathematical calculations
  • Access to: math, datetime, json, re, random modules
  • No external libraries (no pandas, numpy, etc.)
Calculator (calculator)
  • Perform mathematical calculations
  • Simple arithmetic and computations
Randomizer (randomizer)
  • Generate random integers within a configurable range
  • Configurable: min_value, max_value
Memory Management (memory)
  • Save information to designated memory spaces for long-term retention
  • Configurable: modules (list of memory module names to expose)
  • Works with memory modules that have auto_save: false
Schedule Agent Task (schedule_agent_task)
  • Create scheduled tasks (cronjobs) for agents
  • Supports one-time, daily, weekly, and monthly schedules
Manage Agent Tasks (manage_agent_tasks)
  • Query, update, enable/disable, or delete existing schedules
  • Supports batch operations
List Agents (list_agents)
  • Discover agents available to the user
  • Supports semantic search for large catalogs
Search Knowledge Bases (search_knowledge_bases)
  • Discover available knowledge sources (SharePoint, OneDrive, Google Drive, uploaded docs)
  • Used before attaching KBs to agents via the agent builder

​
Microsoft Outlook Toolkit

Requires OAuth authorization via connection:
  • List Emails (outlook_list_emails)
  • Get Email (outlook_get_email)
  • Send Email (outlook_send_email)
  • Reply to Email (outlook_reply_email)
  • Forward Email (outlook_forward_email)
  • List Calendar Events (outlook_list_calendar_events)
  • Get Calendar Event (outlook_get_calendar_event)
  • Create Calendar Event (outlook_create_calendar_event)
  • List Tasks (outlook_list_tasks)
  • Create Task (outlook_create_task)
  • Complete Task (outlook_complete_task)
  • List Contacts (outlook_list_contacts)
  • Create Contact (outlook_create_contact)

​
Microsoft Teams Toolkit

Requires OAuth authorization via connection:
  • Send Message (teams_send_message)
  • Send Chat (teams_send_chat)
  • List Messages (teams_list_messages)
  • List Chats (teams_list_chats)
  • List Teams (teams_list_teams)
  • List Channels (teams_list_channels)
  • Create Meeting (teams_create_meeting) - Can create recurring events

​
Tool Configuration

Some tools allow you to configure parameters like timeout, max results, etc.

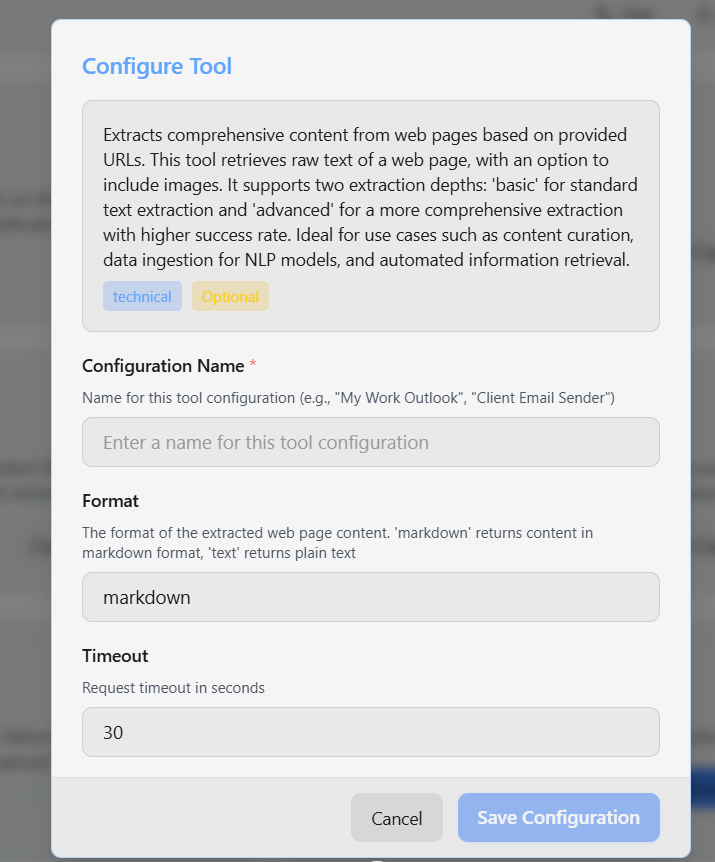

Configure Tool

​
Configurable Tools

Tools like Tavily Search have optional configuration parameters:
  • max_results: Number of search results to return
  • timeout: Request timeout in seconds
  • include_answer: Include AI-generated answer
  • And more tool-specific options
Configuration parameters are set when you create a tool configuration instance. They’re not stored in your YAML, but referenced by the tool name.

​
Non-Configurable Tools

Tools like Wikipedia Search work out of the box with no configuration needed:
tools: ["wikipedia_search"]

​
Tool Security

Toolkit connections grant access to external services. Only create connections you trust.
Monitor tool usage in your agent’s execution logs and tracing.

​
Troubleshooting

“Tool not found”: Check spelling in your YAML. Tool names are case-sensitive
“Tool timeout”: External service may be slow. Increase timeout in tool config
Rate limits: Many external services have rate limits. Configure retry logic in your tool settings

​
Tool Usage Examples

name: "Research Assistant"
architecture: "workflow"

agents:
  - name: "researcher"
    agent_type: "react_agent"
    tools: ["tavily_search"]
    system_prompt: |
      You are a research assistant. When asked about current events or facts,
      use web search to find accurate information.

​
Mathematical Calculations with Python

agents:
  - name: "math_assistant"
    agent_type: "react_agent"
    tools: ["python_repl", "calculator"]
    system_prompt: |
      You are a mathematical assistant. Use Python REPL for complex calculations
      and the calculator for simple arithmetic.

​
Multi-Tool Agent

agents:
  - name: "assistant"
    agent_type: "react_agent"
    tools: ["tavily_search", "wikipedia_search", "calculator"]
    system_prompt: |
      You are a helpful assistant with access to:
      - Web search for current information
      - Wikipedia for general knowledge
      - Calculator for math

      Use the appropriate tool for each task.

​
What’s Next?

Agent Types

ReAct agents and tool execution

Agent Capabilities

Complete guide to agent capabilities and tools

Custom Tools

Build your own tools for agents

Settings

Manage API keys and OAuth integrations
